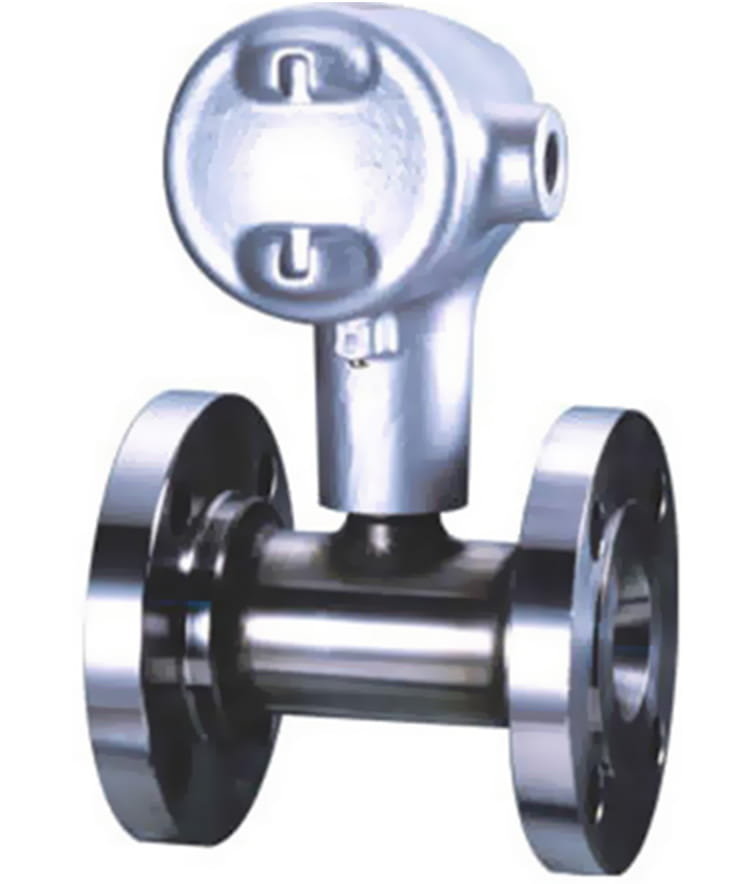

Turbine Meter

Wide measurement range and high accuracy

Features

Our turbine meter is much smaller and lighter

Wide measurement range and high accuracy compared with other types of flowmeters. Our turbine meter is much smaller and lighter, and can measure accurately in a very wide flow range.
The high precision integrating accuracy of ±0.2% can be always maintained for dealings and ±0.5% for general purpose with excellent accuracy repeatability.

Extremely wide range of application

• Applicable fluid
• Temperature
• Pressure

Unique rotor floating structure

The rotor rotates in a floating state by a unique fluid dynamic balancing structure, which facilitates to provide very high accuracy in a wide flow range and superb durability.

Light and compact structure for easy maintenance

The light and compact structure facilitates easy handling and maintenance.

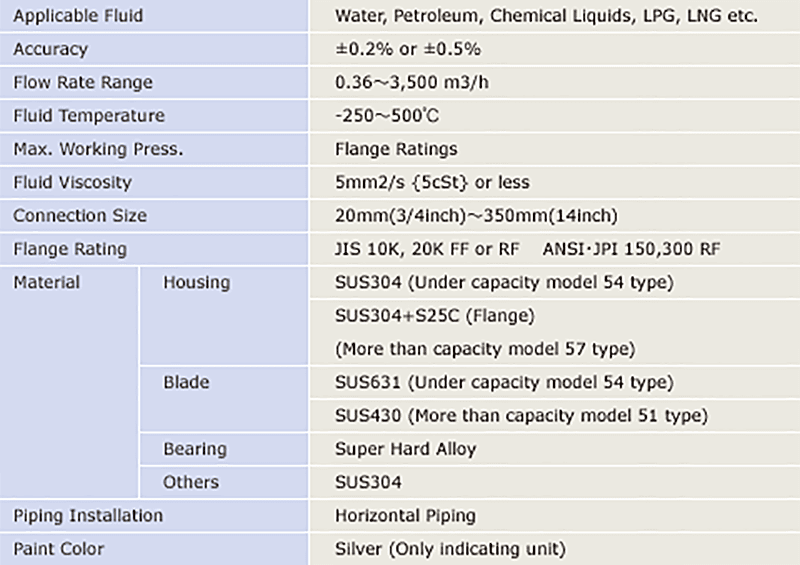

Standard Specifications(MEASURING UNIT)
